Caldwell Model GC Girder Clamps

Girder clamps efficient method for handling wide flange beam sections and plate girders and is used only for vertical lifting

Available in 15, 20 & 25 ton Capacity
These GC Clamps provide an efficient method for handling wide flange beam sections and plate girders.
Screw-spindle design ensures positive grip.
Simple design ensures minimum maintenance.
Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
Jaw opening adjusts to a wide range of beam types and flange widths.
Use only for vertical lifting.
Complies with ASME standards.
USA MADE

Please email for current pricing and lead time

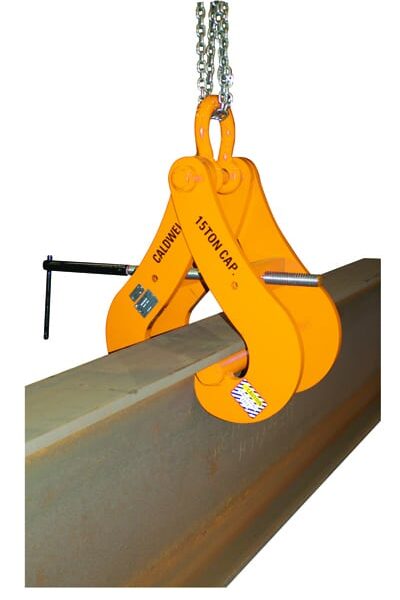

For lifting and positioning structural beams. Can be used in pairs in conjunction with a spreader beam for additional stability.

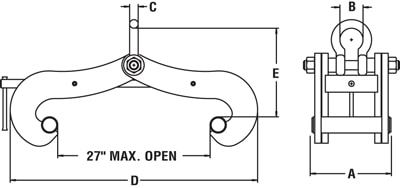

Model Number	Rated Capacity (tons)	Flange Width Min. – Max. (in.)	Max. Flange Thickness (in.)	A (in.)	B (in.)	C (in.)	D Min. – Max. (in.)	E Min. – Max. (in.)	Weight (lbs.)
GC-15	15	6 – 24	3	14.81	3.9	1.6	23 – 44	15.7 – 23.4	234
GC-20	20	6 – 24	3	14.81	5	2.1	23 – 44	18.3 – 25.9	291
GC-25	25	6 – 24	3	14.81	5	2.1	23 – 44	18.3 – 25.9	342
