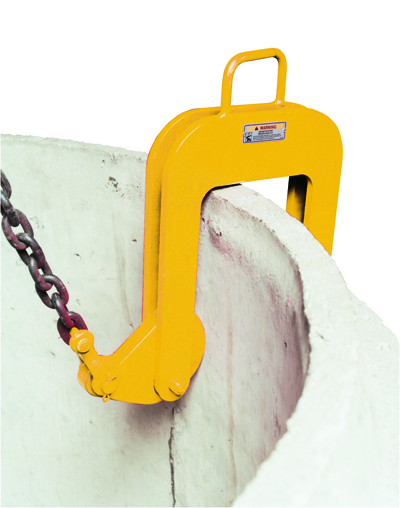

Concrete Manhole Housing Lifter

Manhole Housing Lifters handle concrete pipe efficiently without damage to concrete seat.

CALL216-292-5585 OR EMAIL FOR THE MOST CURRENT PRICING

  • Description

Concrete Manhole Housing Lifter

MHL PRODUCT FEATURES:

  • Handle concrete pipe efficiently without damage to concrete seat.
  • Legs can be quickly positioned to safely balance the load.
  • 2 or 3 leg models available.
  • Handles 4″ – 6″ concrete wall thickness.
  • Requires constant tension to maintain positive load contact.
  • Complies with ASME standards.
  • USA Made

Please email for current pricing and lead time

Model Number Capacity (lbs) Grip Range Description Maximum Diameter Weight (lbs*)
MHL-5.2/4 10,000 2′-4′ 2 Leg Model – Two 42″ Legs 92.5 130
MHL-5.4/6 10,000 4′-6′ 2 Leg Model – Two 42″ Legs 92.5 135

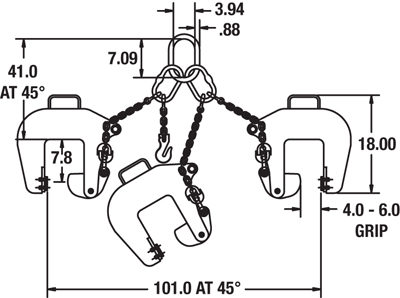

MHL-7.1/2.2/4 15,000 2′-4′ 3 Leg Model – Two 42″ Legs – One with 72″ Chain Shortener 101 180
MHL-7.1/2.4/6 15,000 4′-6′ 3 Leg Model – Two 42″ Legs – One with 72″ Chain Shortener 101 185
MHL-C-2/4 5,000 2′-4′ Clamp Only 40
MHL-C-4/6 5,000 4′-6′ Clamp Only 45
