PLEASE EMAIL FOR CURRENT PRICING AND LEAD TIME
|
Stock Number
|
Type
|
ContainerSize (Ft)
|
Sling Length(Ft)
|
Wire Rope Dia.(In)
|
Single Angle From Horizontal(Deg.)
|
Head Room Required(In)
|
Assembly Weight(Lbs)
|
| CLS-45-20 | Standard | 20 | 38 | 0.88 | 60 | 114 | 260 |
| CLS-45-40 | Standard | 40 | 55 | 1 | 45 | 130 | 353 |
| CLS-48-20 | Adjustable | 20 | 32 | 0.75 | 52.50 | 78 | 532 |
| CLS-48-40 | Adjustable | 40 | 54 | 0.75 | 45 | 162 | 748 |
TOP ADJUSTER MECHANISM SPECIFICATIONS
|
StockNumber
|
Work?Load(Lbs)
|
CTAM Dimensions (In.)
|
Weight(Lbs)
|
||
|
A
|
B
|
C
|
|||
| CTAM24 | 48,000 | 1-3/4 | 6 | 12 | 175 |

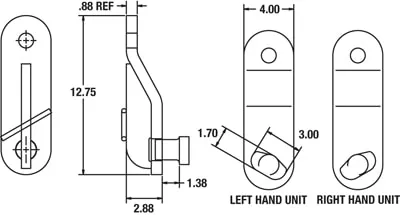

Model LL Specifications
| Model Number | Rated Capacity Each (tons) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | RH Color | LH Color | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| LL-YELLOW | 8-1/2 | 3 | 1-3/4 | 4 | 2 | 2-7/8 | 12-3/4 | Yellow | – | 17 |
| LL-RED | 8-1/2 | 3 | 1-3/4 | 4 | 2 | 2-7/8 | 12-3/4 | – | Red | 17 |
Container Lifting Assemblies provide an efficient way to handle containers which feature a bottom lifting slot. Available in 2 models, standard and adjustable, they are rated for 20 and 40 foot containers with a load limit of 45,000 Lbs for the standard and 48,000 Lbs for the adjustable.All assemblies have wire rope slings, four screw pin anchor shackles and four container lifting lugs.The adjustable style has a top adjuster designed in compliance with ASME B30.20|
Stock Number
|
Type
|
ContainerSize (Ft)
|
Sling Length(Ft)
|
Wire Rope Dia.(In)
|
Single Angle From Horizontal(Deg.)
|
Head Room Required(In)
|
Assembly Weight(Lbs)
|
| CLS-45-20 | Standard | 20 | 38 | 0.88 | 60 | 114 | 260 |
| CLS-45-40 | Standard | 40 | 55 | 1 | 45 | 130 | 353 |
| CLS-48-20 | Adjustable | 20 | 32 | 0.75 | 52.50 | 78 | 532 |
| CLS-48-40 | Adjustable | 40 | 54 | 0.75 | 45 | 162 | 748 |
TOP ADJUSTER MECHANISM SPECIFICATIONS
|
StockNumber
|
Work?Load(Lbs)
|
CTAM Dimensions (In.)
|
Weight(Lbs)
|
||
|
A
|
B
|
C
|
|||
| CTAM24 | 48,000 | 1-3/4 | 6 | 12 | 175 |
