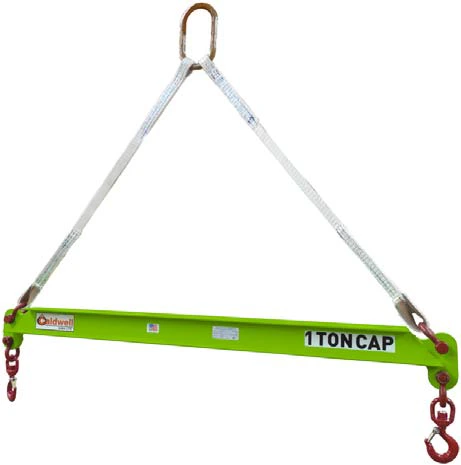

Dura-Lite™ Composite Lifting Beams

These lightweight Lifting Beams are engineered to withstand the demands of rugged environments while being easy to handle and transport

DURA LITE COMPOSITE LIFTING BEAMS

Durable composite materials are bonded together to form ultra-strong lifters. These lightweight products are engineered to withstand the demands of rugged environments while being easy to handle and transport!

Dura-Lite Beams comply with current ASME B30.20, Design Category B, Service Class 4 and are proof tested with a certificate issued.

Product Features:

Lightweight.
Non-Conductive.
Corrosion Resistant.
Complies with ASME B30.20, design category B, service class 4.
Proof tested with certificate issues.

PLEASE EMAIL FOR CURRENT PRICING AND LEAD TIME

Model Number	Capacity (tons)	Spread (in.)	HR (in.)	A (in.)	B (in.)	C (in.)	O (in.)	Weight (lbs.)
419-1/4-2	1/4	24	13.5	.38	1.50	2.0	.89	8
419-1/4-3	1/4	36	13.5	.38	1.50	2.0	.89	10
419-1/4-4	1/4	48	13.5	.38	1.50	2.0	.89	12
419-1/4-6	1/4	72	16.5	.38	1.50	2.0	.89	25
419-1/4-8	1/4	96	16.5	.38	1.50	2.0	.89	31
419-1/4-10	1/4	120	18.5	.38	1.50	2.0	.89	50
419-1/4-12	1/4	144	16.5	.38	1.50	2.0	.89	65
419-1/4-14	1/4	168	18.5	.38	1.50	2.0	.89	97
419-1/2-2	1/2	24	13.9	.38	1.50	1.94	.89	9
419-1/2-3	1/2	36	13.9	.38	1.50	1.94	.89	10
419-1/2-4	1/2	48	14.9	.38	1.50	1.94	.89	14
419-1/2-6	1/2	72	16.9	.38	1.50	1.94	.89	27
419-1/2-8	1/2	96	18.9	.38	1.50	1.94	.89	44
419-1/2-10	1/2	120	18.9	.38	1.50	1.94	.89	79
419-1-2	1	24	19.6	.63	2.8	4.5	.89	14
419-1-3	1	36	19.6	.63	2.8	4.5	.89	16
419-1-4	1	48	21.6	.63	2.8	4.5	.89	24
419-1-6	1	72	23.6	.63	2.8	4.5	.89	38
419-2-2	2	24	21.9	.63	2.80	4.31	.91	23
419-2-3	2	36	21.9	.63	2.80	4.31	.91	32
419-2-4	2	48	25.9	.63	2.80	4.31	.91	55
419-2-6	2	72	25.9	.63	2.80	4.31	.91	68
419-3-2	3	24	24.9	.63	2.80	4.31	1.0	31
419-3-3	3	36	24.9	.63	2.80	4.31	1.0	34
419-3-4	3	48	26.7	.63	2.80	4.31	1.0	57

DURA-LITE BEAM DESTRUCTION TEST

Model Number	Capacity (tons)	Spread (in.)	HR (in.)	A (in.)	B (in.)	C (in.)	O (in.)	Weight (lbs.)
419-1/4-2	1/4	24	13.5	.38	1.50	2.0	.89	8
419-1/4-3	1/4	36	13.5	.38	1.50	2.0	.89	10
419-1/4-4	1/4	48	13.5	.38	1.50	2.0	.89	12
419-1/4-6	1/4	72	16.5	.38	1.50	2.0	.89	25
419-1/4-8	1/4	96	16.5	.38	1.50	2.0	.89	31
419-1/4-10	1/4	120	18.5	.38	1.50	2.0	.89	50
419-1/4-12	1/4	144	16.5	.38	1.50	2.0	.89	65
419-1/4-14	1/4	168	18.5	.38	1.50	2.0	.89	97
419-1/2-2	1/2	24	13.9	.38	1.50	1.94	.89	9
419-1/2-3	1/2	36	13.9	.38	1.50	1.94	.89	10
419-1/2-4	1/2	48	14.9	.38	1.50	1.94	.89	14
419-1/2-6	1/2	72	16.9	.38	1.50	1.94	.89	27
419-1/2-8	1/2	96	18.9	.38	1.50	1.94	.89	44
419-1/2-10	1/2	120	18.9	.38	1.50	1.94	.89	79
419-1-2	1	24	19.6	.63	2.8	4.5	.89	14
419-1-3	1	36	19.6	.63	2.8	4.5	.89	16
419-1-4	1	48	21.6	.63	2.8	4.5	.89	24
419-1-6	1	72	23.6	.63	2.8	4.5	.89	38
419-2-2	2	24	21.9	.63	2.80	4.31	.91	23
419-2-3	2	36	21.9	.63	2.80	4.31	.91	32
419-2-4	2	48	25.9	.63	2.80	4.31	.91	55
419-2-6	2	72	25.9	.63	2.80	4.31	.91	68
419-3-2	3	24	24.9	.63	2.80	4.31	1.0	31
419-3-3	3	36	24.9	.63	2.80	4.31	1.0	34
419-3-4	3	48	26.7	.63	2.80	4.31	1.0	57

Model Number

Capacity (tons)

Spread (in.)

HR (in.)

A (in.)

B (in.)

C (in.)

O (in.)

Weight (lbs.)

419-1/4-2

1/4

13.5

.38

1.50

2.0

.89

419-1/4-3

1/4

13.5

.38

1.50

2.0

.89

419-1/4-4

1/4

13.5

.38

1.50

2.0

.89

419-1/4-6

1/4

16.5

.38

1.50

2.0

.89

419-1/4-8

1/4

16.5

.38

1.50

2.0

.89

419-1/4-10

1/4

120

18.5

.38

1.50

2.0

.89

419-1/4-12

1/4

144

16.5

.38

1.50

2.0

.89

419-1/4-14

1/4

168

18.5

.38

1.50

2.0

.89

419-1/2-2

1/2

13.9

.38

1.50

1.94

.89

419-1/2-3

1/2

13.9

.38

1.50

1.94

.89

419-1/2-4

1/2

14.9

.38

1.50

1.94

.89

419-1/2-6

1/2

16.9

.38

1.50

1.94

.89

419-1/2-8

1/2

18.9

.38

1.50

1.94

.89

419-1/2-10

1/2

120

18.9

.38

1.50

1.94

.89

419-1-2

19.6

.63

2.8

4.5

.89

419-1-3

19.6

.63

2.8

4.5

.89

419-1-4

21.6

.63

2.8

4.5

.89

419-1-6

23.6

.63

2.8

4.5

.89

419-2-2

21.9

.63

2.80

4.31

.91

419-2-3

21.9

.63

2.80

4.31

.91

419-2-4

25.9

.63

2.80

4.31

.91

419-2-6

25.9

.63

2.80

4.31

.91

419-3-2

24.9

.63

2.80

4.31

1.0

419-3-3

24.9

.63

2.80

4.31

1.0

419-3-4

26.7

.63

2.80

4.31

1.0
