Minifor Portable Electric Wire Rope Hoist with Unlimited Lift

The Minfor wire rope conveying mechanism comprises a pulley, the groove of which has a special profile, and in which the wire rope is clamped, under the effect of the load, by two articulated rollers.A preclamping spring, acting on this roller, ensures that even when not under load the wire rope is held firmly by the pulley. Over and above the effect of the pre-clamping spring, the gripping of the wire rope around the conveying mechanism is proportional to the load.

*The Tractel Minifor is a portable electric hoist with unlimited lift*Portable and Versatile

A complete range of electric chain hoists for a wide range of applications

Rated loads of 220 lbs, 660 lbs and 1,000 lbs – can be doubled by a sheave kit

Unlimited height of lift

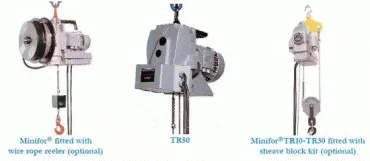

Unloaded wire rope freely suspended or optional rope reeler

Pendant control, Direct lift or sheaving kit for increased capacity

Single phase or 3 phase power

TR10 & TR30 come with a blue steel box

TR30S and TR50 come in a cardboard box

Quality & Power of Minifor

• High power to weight ratio
• Body in aluminum alloy
• Unlimited length of lifting wire rope
• Wire rope, dia. 0.25 in (6.5 mm)110V standard, 220V available
• Safety Upper and lower adjustable end limit stops
• Motor integrated brake
