Model ASTL Non-Locking Lifting Clamp

Renfroe Model ASTL was developed primarily for lifting, turning and stacking light weight beams and structural shapes while a constant tension is applied to the lifting shackle.

CALL216-292-5585 OR EMAIL FOR THE MOST CURRENT PRICING

  • Description
  • Technical Specification

The horizontal shackle permits a beam to be lifted with the web in a near horizontal position by placing the clamp on the load with the shackle positioned over the web, and between the flanges. With a beam lying in a horizontal position, and the clamp placed with the shackle over hanging the flange, the beam can be lifted, turned 90 degrees, and raised in a vertical position. The Model ASTL includes all of the feature of the Model AST plus a linkage which permits the tool to be removed remotely by setting the load down with the sling slack, then lifting the crane hook.

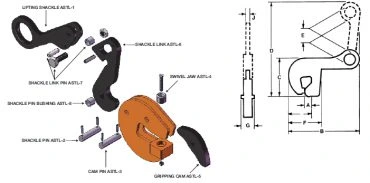

Rated Capacity ( Tons ) Plate Thickness A ( in. ) MAX. B ( in. ) C ( in. ) D ( in. ) E ( in. ) F ( in. ) G ( in. ) H ( in. ) J ( in. ) Weight ( lbs. )
  1/2   0-1 1⁄2   19 1⁄4   12 1⁄2   –   3 3⁄4   11   3   4 5⁄8   3⁄4   50
  1 1⁄2   0-3⁄4   13   8 1⁄2   18 1⁄2   2 1⁄2   7   2 9⁄16   3   5⁄8   24
  3   0-1 1⁄2   19 1⁄4   12 1⁄2   25   3 3⁄4   11   3   4 5⁄8   3⁄4   61
