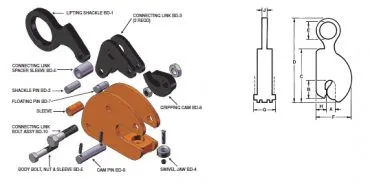

Renfroe Model BD is a vertical lifting, non-locking clamp used primarily for steel warehousing and bench work where a locking type clamp is not essential.
The clamp is a low-cost, low maintenance tool that features lightweight and compact size. It is recommended for use and application where constant tension is applied to the lifting shackle throughout the entire operation.
| Rated Capacity ( Tons ) | Plate Thickness A ( in. ) | MAX. B ( in. ) | C ( in. ) | D ( in. ) | E ( in. ) | F ( in. ) | G ( in. ) | H ( in. ) | J ( in. ) | Weight ( lbs. ) |
| 1/2 | 0-1 | 2 9/16 | 6 5/16 | 10 3/8 | 1 3/4 | 4 1/2 | 2 1/4 | 1 3/8 | 1/2 | 6 |
| 1 | 0-1 1/8 | 3 1/16 | 7 5/16 | 12 3/4 | 2 1/2 | 5 9/16 | 2 7/8 | 1 5/8 | 5/8 | 11 |
| 2 | 0-1 3/8 | 3 9/16 | 8 1/16 | 14 1/2 | 3 1/8 | 6 9/16 | 3 | 2 1/4 | 5/8 | 16 |
| 4 | 0-1 3/4 | 3 7/8 | 10 3/4 | 17 3/4 | 3 1/8 | 7 7/16 | 3 7/8 | 2 1/4 | 3/4 | 27 |
| 7 | 1/4 – 2 1/2 | 5 | 12 3/4 | 22 1/2 | 3 7/8 | 9 5/8 | 5 | 3 | 1 | 65 |
