Renfroe Model DC is a vertical lifting, locking and 180° turning clamp.
The DC’s unique design, utilizing two movable gripping cams, allows this clamp to lift any load within its plate size range from 0 up to 6 ton with a 300 Brinell hardness or less.

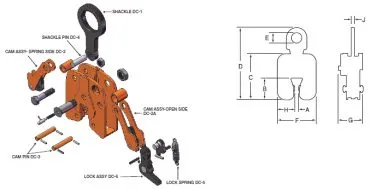

| Model | Rated Capacity ( Tons ) | Plate Thickness A ( in. ) | B ( in. ) | MAX C. ( in. ) | D ( in. ) | E ( in. ) | F ( in. ) | G ( in. ) | H ( in. ) | J ( in. ) | Weight ( lbs. ) |
| DC-A | 1/2 | 0 – 5/8 | 2 5/16 | 5 | 7 7/8 | 1 1/8 | 4 3/8 | 2 5/8 | 1 7/8 | 5/16 | 6 |
| DC-B | 1/2 | 0 – 3/4 | 2 9/16 | 6 5/16 | 9 1/4 | 1 1/8 | 5 1/2 | 23/4 | 2 3/8 | 5/16 | 9 |
| DC-C | 1/2 | 3/4 – 1 1/2 | 2 9/16 | 6 3/8 | 9 1/2 | 1 1/8 | 6 1/4 | 2 3/4 | 2 3/8 | 5/16 | 10 |
| DC | 1 | 0-1 1/8 | 3 3/8 | 7 5/16 | 12 1/8 | 2 5/8 | 6 3/8 | 3 3/4 | 2 5/8 | 5/16 | 15 |
| DC | 3 | 0-3/4 | 4 3/4 | 9 1/4 | 17 1/4 | 3 5/8 | 8 | 4 3/8 | 3 5/8 | 3/4 | 30 |
| DC | 6 | 0 – 1 | 5 7/8 | 11 1/2 | 19 | 3 1/2 | 10 1/2 | 4 3/4 | 4 3/4 | 1 1/2 | 54 |
| DC | 6 | 2-3 | 5 7/8 | 11 5/8 | 19 | 3 1/2 | 10 7/8 | 4 3/4 | 4 | 1 1/2 | 51 |
| DC | 6 | 1 1/2 – 3 | 5 7/8 | 11 5/8 | 19 | 3 1/2 | 10 7/8 | 4 3/4 | 4 | 1 1/2 | 51 |
