Renfroe Model FR is a vertical lifting tool for relatively light work.
It is small and easy to handle in capacities through three tons. It incorporates a “Lock Closed” feature which facilitates attaching the clamp to the plate.

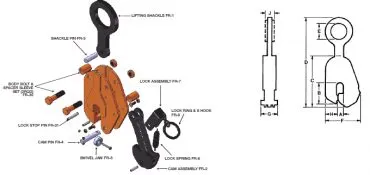

| Rated Capacity( Tons ) | Plate Thickness A( in. ) | B( in. ) | C( in. ) | MAX. D( in. ) | E( in. ) | F( in. ) | G( in. ) | H( in. ) | J( in. ) | Weight( lbs. ) |
| 1/2 | 0-3⁄4 | 2 13⁄16 | 7 | 11 1⁄4 | 2 3⁄8 | 4 5⁄8 | 2 1⁄2 | 1 1⁄2 | 1⁄2 | 8 |
| 1/2 | 1⁄2-1 | 2 13⁄16 | 7 | 11 1⁄4 | 2 3⁄8 | 4 7⁄8 | 2 1⁄2 | 1 1⁄2 | 1⁄2 | 8 |
| 1/2 | 3⁄4-1 1⁄4 | 2 13⁄16 | 7 | 11 1⁄4 | 2 3⁄8 | 5 1⁄8 | 2 1⁄2 | 1 1⁄2 | 1⁄2 | 9 |
| 1/2 | 1-1 1⁄2 | 2 13⁄16 | 7 | 11 1⁄4 | 2 3⁄8 | 5 3⁄8 | 2 1⁄2 | 1 1⁄2 | 1⁄2 | 10 |
| 1/2 | 1 1⁄4-1 3⁄4 | 2 13⁄16 | 7 | 11 1⁄4 | 2 3⁄8 | 5 3⁄8 | 2 1⁄2 | 1 1⁄2 | 1⁄2 | 11 |
| 1 | 0-3⁄4 | 3 3⁄16 | 9 | 13 3⁄4 | 2 5⁄8 | 5 7⁄8 | 3 3⁄16 | 1 5⁄8 | 5⁄8 | 14 |
| 1 | 1⁄2-1 | 3 3⁄16 | 9 | 13 3⁄4 | 2 5⁄8 | 6 1⁄8 | 3 3⁄16 | 1 5⁄8 | 5⁄8 | 15 |
| 1 | 3⁄4-1 1⁄4 | 3 3⁄16 | 9 | 13 3⁄4 | 2 5⁄8 | 6 3⁄8 | 3 3⁄16 | 1 5⁄8 | 5⁄8 | 15 |
| 1 | 1-1 1⁄2 | 3 3⁄16 | 9 | 13 3⁄4 | 2 5⁄8 | 6 5⁄8 | 3 3⁄16 | 1 5⁄8 | 5⁄8 | 16 |
| 1 | 1 1⁄4-1 3⁄4 | 3 3⁄16 | 9 | 13 3⁄4 | 2 5⁄8 | 6 7⁄8 | 3 3⁄16 | 1 5⁄8 | 5⁄8 | 17 |
| 1 | 1 1⁄2-2 | 3 3⁄16 | 9 | 13 3⁄4 | 2 5⁄8 | 7 1⁄8 | 3 3⁄16 | 1 5⁄8 | 5⁄8 | 18 |
| 2 | 0-1 | 3 1⁄2 | 9 | 16 ⁄8 | 3 5⁄8 | 6 3⁄4 | 3 3⁄8 | 2 1⁄8 | 3⁄4 | 23 |
| 2 | 3⁄4-1 1⁄2 | 3 1⁄2 | 9 | 16 3⁄8 | 3 5⁄8 | 7 1⁄4 | 3 3⁄8 | 2 1⁄8 | 3⁄4 | 23 |
| 2 | 1 1⁄4-2 | 3 1⁄2 | 9 | 16 3⁄8 | 3 5⁄8 | 7 3⁄4 | 3 3⁄8 | 2 1⁄8 | 3⁄4 | 23 |
| 2 | 1 3⁄4-2 1⁄2 | 3 1⁄2 | 9 | 163⁄8 | 3 5⁄8 | 8 1⁄4 | 3 3⁄8 | 2 1⁄8 | 3⁄4 | 24 |
| 3 | 0-1 1⁄4 | 4 3⁄16 | 10 3⁄4 | 18 3⁄8 | 3 5⁄8 | 7 5⁄8 | 3 9⁄16 | 2 7⁄16 | 3⁄4 | 30 |
| 3 | 3⁄4-1 1⁄2 | 4 3⁄16 | 10 3⁄4 | 18 3⁄8 | 3 5⁄8 | 7 7⁄8 | 3 9⁄16 | 2 7⁄16 | 3⁄4 | 31 |
| 3 | 1 1⁄4-2 | 4 3⁄16 | 10 3⁄4 | 18 3⁄8 | 3 5⁄8 | 8 3⁄8 | 3 9⁄16 | 2 7⁄16 | 3⁄4 | 32 |
| 3 | 1 3⁄4-2 1⁄2 | 4 3⁄16 | 10 3⁄4 | 18 3⁄8 | 3 5⁄8 | 8 7⁄8 | 3 9⁄16 | 2 7⁄16 | 3⁄4 | 33 |
