Renfroe Model RO incorporates a Lock Open Only.
Renfroe Model RO incorporates a “Lock Open Only” feature allowing the clamp to be “Locked Open,” lifted onto a “hot” plate and the lock released without the operator coming in close contact with the “hot” plate.

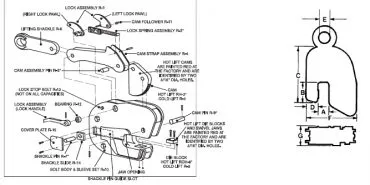

| Rated Capacity ( Tons ) | Plate Thickness A ( in. ) | B ( in. ) | C ( in. ) | D ( in. ) | E ( in. ) | F ( in. ) | G ( in. ) | Weight ( lbs. ) |
| 35 | 1⁄4-4 1⁄4 | 8 3⁄8 | 23 5⁄8 | 5 1⁄16 | 5 | 21 3⁄8 | 8 | 470 |
| 35 | 4-8 | 8 3⁄8 | 23 5⁄8 | 5 1⁄16 | 5 | 25 1⁄8 | 8 | 515 |
| 50 | 1⁄2-6 1⁄2 | 13 | 44 3⁄4 | 9 | 5 | 36 | 13 1⁄2 | 1370 |
| 50 | 6-12 | 13 | 44 3⁄4 | 9 | 5 | 41 1⁄2 | 13 1⁄2 | 1500 |
| 75 | 1⁄2-6 1⁄2 | 16 1⁄2 | 46 3⁄4 | 14 1⁄4 | 11 | 42 1⁄2 | 12 1⁄2 | 2700 |
| 75 | 3-9 | 16 1⁄2 | 46 3⁄4 | 14 1⁄4 | 11 | 45 | 12 1⁄2 | 2775 |
| 75 | 6-12 | 16 1⁄2 | 46 3⁄4 | 14 1⁄4 | 11 | 48 | 12 1⁄2 | 2850 |
| 75 | 8-14 | 16 1⁄2 | 46 3⁄4 | 14 1⁄4 | 11 | 50 | 12 1⁄2 | 2900 |
