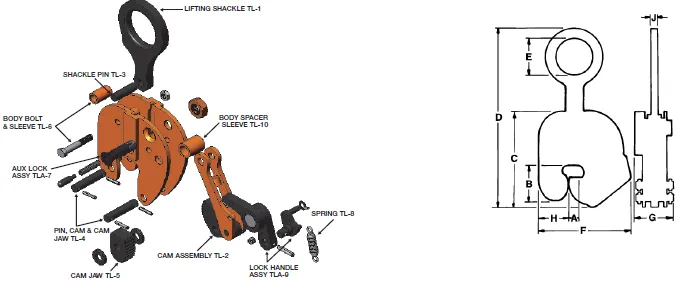

Renfroe Model TLA is a vertical lifting clamp incorporating a “Lock Open” and a “Lock Closed” feature and an auxiliary lock.
The Model TLA is a vertical lifting clamp incorporating a “Lock Open” and a “Lock Closed” feature and an auxiliary lock.
The clamp is capable of turning a steel plate from horizontal to vertical to horizontal through a 180 degree arc.
The “Lock Open,” “Lock Closed” feature facilitates attaching and removing the clamp from the plate.
| Rated Capacity ( Tons ) | Plate Thickness A ( in. ) | B ( in. ) | C ( in. ) | MAX. D ( in. ) | E ( in. ) | MAX. F ( in. ) | G ( in. ) | H ( in. ) | J ( in. ) | Weight ( lbs. ) |
| 1/2 | 0-5⁄8 | 2 3⁄8 | 6 1⁄4 | 11 1⁄8 | 2 3⁄8 | 4 3⁄4 | 2 3⁄4 | 1 13⁄16 | 1⁄2 | 9 |
| 1/2 | 1⁄2-1 | 2 3⁄8 | 6 1⁄4 | 11 1⁄8 | 2 3⁄8 | 5 1⁄8 | 2 3⁄4 | 1 13⁄16 | 1⁄2 | 10 |
| 1/2 | 3⁄4-1 1⁄4 | 2 3⁄8 | 6 1⁄4 | 11 1⁄8 | 2 3⁄8 | 5 3⁄8 | 2 3⁄4 | 1 13⁄16 | 1⁄2 | 11 |
| 1/2 | 1 1⁄4-1 3⁄4 | 2 3⁄8 | 6 1⁄4 | 11 1⁄8 | 2 3⁄8 | 5 7⁄8 | 2 3⁄4 | 1 13⁄16 | 1⁄2 | 13 |
| 1 | 0-3⁄4 | 3 | 7 1⁄2 | 13 1⁄8 | 2 5⁄8 | 6 | 2 13⁄16 | 2 | 5⁄8 | 14 |
| 1 | 1⁄2-1 | 3 | 7 1⁄2 | 13 1⁄8 | 2 5⁄8 | 6 1⁄4 | 2 13⁄16 | 2 | 5⁄8 | 15 |
| 1 | 3⁄4-1 1⁄4 | 3 | 7 1⁄2 | 13 1⁄8 | 2 5⁄8 | 6 1⁄2 | 2 13⁄16 | 2 | 5⁄8 | 16 |
| 1 | 1-1 1⁄2 | 3 | 7 1⁄2 | 13 1⁄8 | 25⁄8 | 63⁄4 | 2 13⁄16 | 2 | 5⁄8 | 17 |
| 1 | 1 1⁄2-2 | 3 | 7 1⁄2 | 13 1⁄8 | 2 5⁄8 | 7 1⁄4 | 2 13⁄16 | 2 | 5⁄8 | 18 |
| 2 | 0-1 | 3 1⁄2 | 9 3⁄8 | 16 1⁄4 | 3 5⁄8 | 8 7⁄8 | 3 3⁄4 | 2 7⁄8 | 3⁄4 | 32 |
| 2 | 3⁄4-1 1⁄2 | 3 1⁄2 | 9 3⁄8 | 16 1⁄4 | 3 5⁄8 | 9 3⁄8 | 3 3⁄4 | 2 7⁄8 | 3⁄4 | 33 |
| 2 | 1 1⁄4-2 | 3 1⁄2 | 9 3⁄8 | 16 1⁄4 | 3 5⁄8 | 9 7⁄8 | 3 3⁄4 | 2 7⁄8 | 3⁄4 | 35 |
| 2 | 2-2 3⁄4 | 3 1⁄2 | 9 3⁄8 | 16 1⁄4 | 3 5⁄8 | 10 5⁄8 | 3 3⁄4 | 2 7⁄8 | 3⁄4 | 37 |
| 4 | 3⁄16-1 1⁄4 | 4 | 97⁄8 | 17 5⁄8 | 3 5⁄8 | 9 | 3 13⁄16 | 3 | 3⁄4 | 36 |
| 4 | 1-2 | 4 | 9 7⁄8 | 17 5⁄8 | 3 5⁄8 | 9 3⁄4 | 3 13⁄16 | 3 | 3⁄4 | 37 |
| 4 | 2-3 | 4 | 9 7⁄8 | 17 5⁄8 | 3 5⁄8 | 10 3⁄4 | 3 13⁄16 | 3 | 3⁄4 | 40 |
| 4 | 3-4 | 4 | 9 7⁄8 | 17 5⁄8 | 3 5⁄8 | 11 3⁄4 | 3 13⁄16 | 3 | 3⁄4 | 43 |
| 6 | 1⁄4-1 3⁄8 | 4 5⁄8 | 11 1⁄8 | 20 1⁄8 | 3 1⁄2 | 10 1⁄4 | 3 7⁄8 | 3 3⁄8 | 3⁄4 | 49 |
| 6 | 1-2 1⁄8 | 4 5⁄8 | 11 1⁄8 | 20 1⁄8 | 3 1⁄2 | 11 | 3 7⁄8 | 3 3⁄8 | 3⁄4 | 51 |
| 6 | 2-3 1⁄8 | 4 5⁄8 | 11 1⁄8 | 20 1⁄8 | 3 1⁄2 | 12 | 3 7/8 | 3 3⁄8 | 3⁄4 | 54 |
| 6 | 3-4 1⁄8 | 45⁄8 | 111⁄8 | 201⁄8 | 3 1⁄2 | 13 | 3 7⁄8 | 3 3⁄8 | 3⁄4 | 57 |
| 8 | 3⁄8-1 1⁄2 | 4 13⁄16 | 12 5⁄16 | 21 5⁄16 | 3 3⁄4 | 11 1⁄2 | 4 3⁄4 | 3 7⁄8 | 1 | 72 |
| 8 | 1-2 1⁄8 | 4 13⁄16 | 12 5⁄16 | 21 5⁄16 | 3 3⁄4 | 12 1⁄8 | 4 3⁄4 | 3 7⁄8 | 1 | 74 |
| 8 | 2-3 1⁄8 | 4 13⁄16 | 12 5⁄16 | 21 5⁄16 | 3 3⁄4 | 13 1⁄8 | 4 3⁄4 | 3 7⁄8 | 1 | 77 |
| 8 | 3-4 1⁄8 | 4 13⁄16 | 12 5⁄16 | 21 5⁄16 | 3 3⁄4 | 14 1⁄8 | 4 3⁄4 | 3 7⁄8 | 1 | 80 |
| 12 | 1⁄2-2 1⁄2 | 6 1⁄4 | 15 1⁄8 | 26 3⁄16 | 3 7⁄8 | 14 1⁄2 | 6 3⁄4 | 4 3⁄8 | 1 3⁄4 | 142 |
| 12 | 2-4 | 6 1⁄4 | 15 1⁄8 | 26 3⁄16 | 3 7⁄8 | 16 | 6 3⁄4 | 4 3⁄8 | 1 3⁄4 | 150 |
| 12 | 3-5 | 6 1⁄4 | 15 1⁄8 | 26 3⁄16 | 3 7⁄8 | 17 | 6 3⁄4 | 4 3⁄8 | 1 3⁄4 | 154 |
| 12 | 4-6 | 6 1⁄4 | 15 1⁄8 | 26 3⁄16 | 3 7⁄8 | 18 | 6 3⁄4 | 4 3⁄8 | 1 3⁄4 | 158 |
| 20 | 1⁄2-3 | 8 1⁄8 | 21 3⁄4 | 36 11⁄16 | 5 | 20 11⁄16 | 8 1⁄16 | 6 3⁄16 | 2 3⁄4 | 415 |
| 20 | 2 1⁄2-4 1⁄2 | 8 1⁄8 | 21 3⁄4 | 36 11⁄16 | 5 | 22 3⁄16 | 8 1⁄16 | 6 3⁄16 | 2 3⁄4 | 426 |
| 20 | 3-5 | 8 1⁄8 | 21 3⁄4 | 36 11⁄16 | 5 | 22 11⁄16 | 8 1⁄16 | 6 3⁄16 | 2 3⁄4 | 430 |
| 20 | 5-7 | 8 1⁄8 | 21 3⁄4 | 36 11⁄16 | 5 | 24 11⁄16 | 8 1⁄16 | 6 3⁄16 | 2 3⁄4 | 445 |
