Pallet Lifters

Caldwell Pallet Lifters

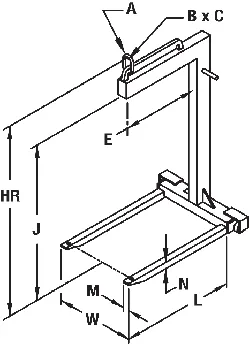

Frame with fixed forks width for handling loads similar in size and shape or repetitive handling of the same size load.

Model Number	Capacity (tons)	L	M	N	W	E	A	B	C	J*	HR	Weight (lbs.)
90-1-36	1	36	2	2	25	18	1	6	5	48	57-1/2	292
90-1-42	1	42	2	2	25	21	1	6	5	48	57-1/2	310
90-1-48	1	48	2	2	25	24	1	6	5	48	58-1/2	371
90-1.1/2-36	1-1/2	36	3	2	25	18	1	6	5	48	58-1/2	388
90-1.1/2-42	1-1/2	42	3	2	25	21	1	6	5	48	58-1/2	432
90-1.1/2-48	1.1/2	48	3	2	25	24	1	6	5	48	58-1/2	459
90-2-36	2	36	3	2	25	18	1	6	5	48	59-1/2	448
90-2-42	2	42	4	2	25	21	1	6	5	48	59-1/2	536
90-2-48	2	48	4	2	25	24	1	6	5	48	59-1/2	627
90-3-42	3	42	4-1/2	2-1/2	25	21	1-1/2	6-1/8	7	48	61-1/2	766
90-3-48	3	48	4-1/2	2-1/2	27	24	1-1/2	6-1/8	7	48	61-1/2	823
90-3-54	3	54	4-1/2	2-1/2	3	27	1-1/2	6-1/8	7	48	61-1/2	969
90-4-48	4	48	5	3	27	24	1-1/2	6-1/8	7	48	63-1/2	1176
90-4-60	4	60	5	3	30	30	1-1/2	6-1/8	7	60	75-1/2	1393
90-5-48	5	48	5	3	30	24	1-1/2	6-1/8	7	48	63-1/2	1193
90-5-60	5	60	4-1/2	2-1/2	38	30	1-1/2	8-1/8	7	60	75-1/2	1403

OTHER DESIGNS AVAILABLEADJUSTABLE FORK PALLET LIFTER

Model Number	Capacity (tons)	L	M	N	W – Min.	W – Max.	E	A	B	C	J*	HR	Weight (lbs)
91-1-36	1	36	2	2	16	38	18	1	3	5	48	58	670
91-1-42	1	42	2	2	16	38	21	1	3	5	48	58	760
91-1-48	1	48	2	2	16	38	24	1	3	5	48	59	780
91-1 1/2-36	1-1/2	36	3	2	16	38	18	1	3	5	48	59	845
91-1 1/2-42	1-1/2	42	3	2	16	38	21	1	3	5	48	59	900
91-1 1/2-48	1-1/2	48	3	2	16	38	24	1	3	5	48	60	950
91-2-36	2	36	3	2	16	38	18	1	3	5	48	60	980
91-2-42	2	42	4	2	16	38	21	1	3	5	48	60	1060
91-2-48	2	48	4	2	16	38	24	1	3	5	48	59-1/2	1080
91-3-42	3	42	4-1/2	2-1/2	16	38	21	1-1/2	4	7	48	61-1/2	1250
91-3-48	3	48	4-1/2	2-1/2	16	38	24	1-1/2	4	7	48	61-1/2	1368
91-3-54	3	54	4-1/2	2-1/2	16	38	27	1-1/2	4	7	48	63	2005
91-4-48	4	48	5	3	19	38	24	1-1/2	4	7	48	64	1600
91-4-60	4	60	5	3	19	38	30	1-1/2	4	7	48	64	2240
91-5-48	5	48	5	3	19	38	24	1-1/2	4	7	48	65	1865
91-5-60	5	60	4-1/2	2-1/2	19	38	30	1-1/2	4	7	60	77	2190

HAND WHEEL ADJUSTABLE FORK

Model Number	Capacity (tons)	L	M	N	W – Min	W – Max	E	A	B	C	J*	HR	Weight (lbs.)
92-1-36	1	36	2	2	16	38	18	1	3	5	48	58	890
92-1-42	1	42	2	2	16	38	21	1	3	5	48	58-1/2	800
92-1-48	1	48	2	2	16	38	24	1	3	5	48	58-1/2	1051
92-1.1/2-36	1.1/2	36	3	2	22-1/2	38	18	1	3	5	48	58	1000
92-1.1/2-42	1.1/2	42	3	2	22.1/2	38	21	1	3	5	48	60	1055
92-1.1/2-48	1.1/2	48	3	2	22.1/2	38	24	1	3	5	48	60	1130
92-2-36	2	36	3	2	22.1/2	38	18	1	3	5	48	60	1105
92-2-42	2	42	4	2	23	38	21	1	3	5	48	60	1351
92-2-48	2	48	4	2	24	38	24	1	3	5	48	59.1/2	1360
92-3-42	3	42	5	2	23	38	21	1.1/2	4	7	48	61.1/2	1465
92-3-48	3	48	4.1/2	2.1/2	24	38	24	1.1/2	4	7	48	63.1/2	1600
92-3-54	3	54	4.1/2	2.1/2	24	38	27	1.1/2	4	7	48	63	2130
92-4-48	4	48	5	3	28.1/2	38	24	1.1/2	4	7	48	62.1/2	2035
92-4-60	4	60	5	3	28.1/2	38	30	1.1/2	4	7	60	76	2385
92-5-48	5	48	5	3	25.1/2	38	24	1.1/2	4	7	48	65	2550
92-5-60	5	60	4.1/2	2.1/2	25.1/2	38	30	1.1/2	4	7	60	79	2740

* We recommend an additional 3 – 4″ clearance above the load for ease of loading and unloading the lifter.

WHEELED PALLET LIFTER

Model Number	Capacity (tons)	L (in.)	M (in.)	N (in.)	W (in.)	E (in.)	A (in.)	B (in.)	C (in.)	J (in.)	HR (in.)	Weight (lbs)
93W-1-48	1	36	2	2	25	24	1/2	2-1/2	3-3/4	48	60	245
93W-2-48	2	36	4	2	25	24	3/4	2-3/4	4-/12	48	62	405
